Product description

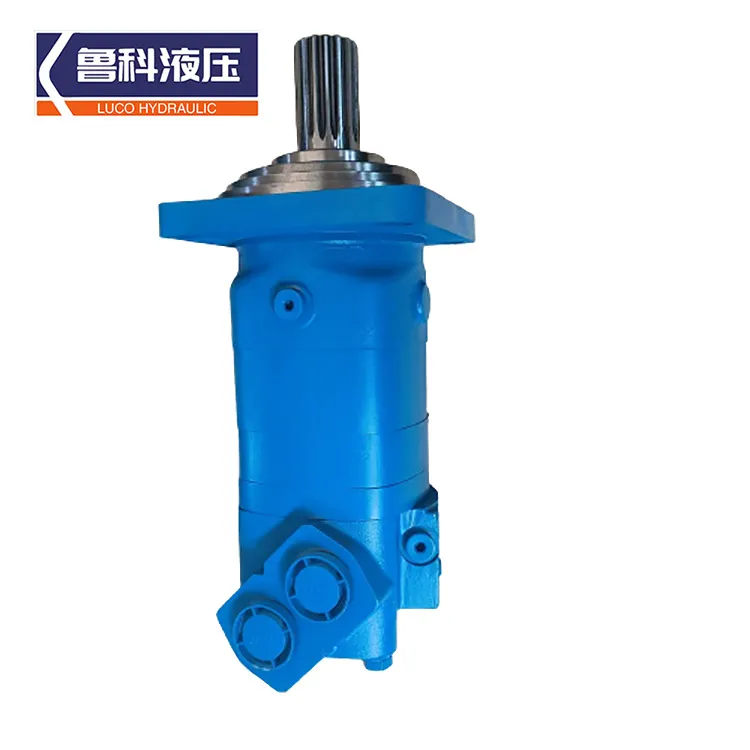

B6K Orbit Hydraulic Motor

B6K Orbit Hydraulic Motor, also known as the BM6 Orbit Hydraulic Motor, adapt advanced Geroler set design with disc distribution. The displacement range is from 195 cc/r to 985 cc/r, can meet the requirements of various equipment speeds and torque levels. The motor has the characteristics of high speed and stable, low speed and stable, low noise, high efficiency, reliable and durable. - The output shaft of the motor is supported by heavy tapered roller bearings, and is locked by nuts which can accurately adjust the bearing clearance, making the motor more reliable.

Characteristic features:

1. Geroler set which use low pressure of start-up, provide smooth and reliable operation and high efficiency.

2. The output shaft adapts in tapered roller bearings that permit high axial and radial forces. Thus can offer capacities of high pressure and high torque in the wide of applications.

3. Advanced design in disc distribution flow, which can automatically compensate in operating with high volume.efficiency and long life. This can also provide smooth and reliable operation.
-6K series motors include: B6K small square flange motor /6K large square flange motor B6KW wheel motor /6KS bearingless motor
B6KB brake motor and other connection forms, can completely replace the domestic, Europe and the United States and other regions of white

This series of motors include:

BM6(B6K Standard) /B6KW (wheel motor) /B6KS (Bearingless )/B6KB(Hydraulic Motor with Brake) with different size and shape of flange and shaft.

You can choose the shaft and flange according to your needs.

The BM6 Orbit Hydraulic Motor is designed to operate in a wide range of environments. It is a sturdy and reliable motor that is ideal for use in different applications. It is Widely used in agriculture, forestry machinery, fishery, machine tools, lifting equipment, construction engineering equipment, all kinds of drilling equipment, engineering vehicles and other industries.

In the construction industry, the BM6 hydraulic motor can be used in excavators, skid steers, and other heavy equipment. Its high torque and low speed capabilities make it perfect for powering the tracks or wheels of these machines, allowing them to move easily on rough terrain. It is also strong enough to withstand harsh weather conditions and tough working environments, ensuring that construction projects can continue uninterrupted.

Similarly, the agricultural industry can benefit from the use of the BM6 hydraulic motor. It is a great choice for use in tractors and other farm machinery, as well as in transport vehicles used for harvesting and distribution. With its efficient energy transmission and high torque, the BM6 motor can help to increase productivity and reduce the time required for certain tasks.

Overall, the BM6 Orbit Hydraulic Motor is a versatile and durable motor that is ideal for use in a variety of environments. Whether it is in construction, agriculture, or any other industry, this motor can be relied upon to provide reliable performance and efficient power transmission. So, if you are looking for a motor that can stand up to tough working conditions, the BM6 Orbit Hydraulic Motor is definitely worth considering.

Specification Data

Displ. cm³/r		195	245	310	390	490	625	800	985
Flow (LPM)	Continuous	150	150	150	150	150	150	150	150
Flow (LPM)	Intermittent	170	210	225	225	225	225	225	225
Speed (RPM)	Continuous	775	615	698	387	307	241	184	153
Speed (RPM)	Intermittent	866	834	485	570	454	355	278	230
Pressure (bar)	Continuous	170	170	170	170	170	120	120	120
Pressure (bar)	Intermittent	275	275	275	275	240	140	140	140
Torque (N.m)	Continuous	475	615	775	965	1215	1125	1380	1570
Torque (N.m)	Intermittent	770	980	1225	1455	1685	1330	1650	1875

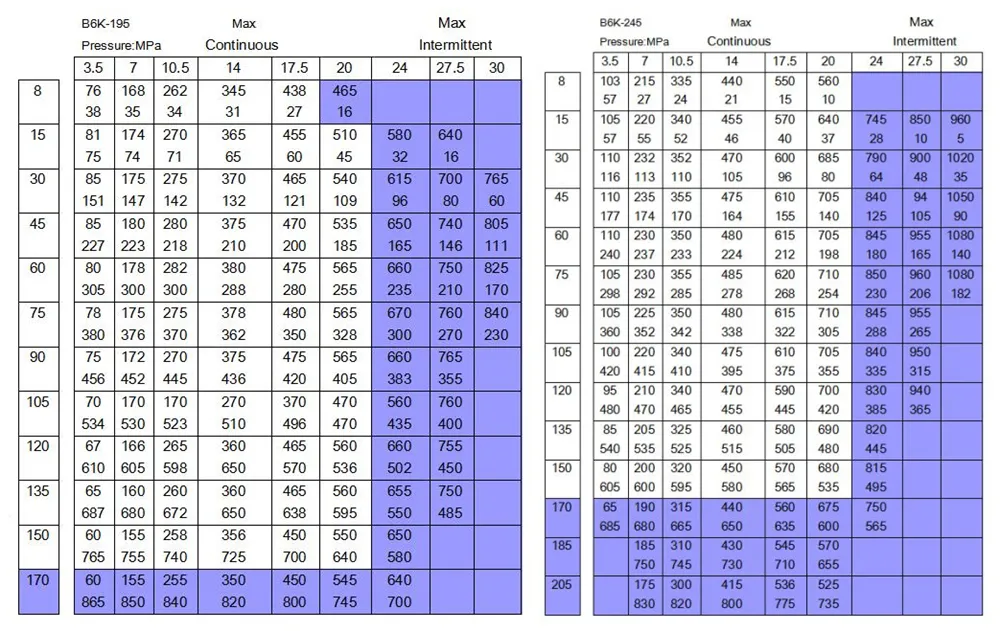

Performance Data

Dimensions

Dimensions of Shaft

Dimensions of oil port

Order information

1	2	3		4		5		6		7
Code	Displ.(CC/r)	Flange Pilot Dia.		Output Shaft		Port(A/B)and Drain Port(T)		Rotation Direction		Paint
B6K B6KW B6KS	195	F1	Square-flange, 4-ф14 holes on pilot Dia. φ125φ160 Dia.Bolt Circle	A1	Splined 6D-40X35X10	P1	(AB):G1 (A/B):G1 (T): G114	R	Standard	N	No paint
	245	F2	Square-flange, 4-φ14.5 holes on φ162 Dia.Bolt Circle Pilot Dia. φ127	A2	Cylindrical shaft φ38.1 Parallel key A9.53x9.53x45	P2	(A/B): M33X2 (T): M14X1.5			Q	Blue
	310	F3	Square-flange, 4-φ17 holes on φ162 Dia.Bolt Circle Pilot Dia. φ127	A3	Splined 8D-42X36X7	P3	(A/B):1-5/16-12UN (T):7/16-20UNF
	390	F4	Sqyare-flange, 4-φ18 holes on φ200 Dia.Bolt Circle ,Pilot Dia.φ160	A4	Cylindrical shaft φ42Parallel key A12X8X63	P4	(A/B):G3/4 (T): G1/4
	490	F5	4 Bolt(Wheel Motor) Pilot Dia.φ139.7	A5	Cylindrical shaft φ40 Parallel key 12X8X45	P5	(A/B): M27X2 0-ring H(T): G1/4
	490	F5	4 Bolt(Wheel Motor) Pilot Dia.φ139.7	A5		P6	(A/B):1-1/16-12UNF O-ring (T):7/16-20UNF ,0-ring
	625	F6	Flange(Bearingless motor) Pilot Dia.φ127	A6	Cylindrical shaft φ40 Parallel key A12X8X65	P7	(A/B):φ16 (T):M14X1.5 4-M12Manifold Mount	L	Opposite	B	Black
	800			A7	Splined 6D-35X29X10	P8	(A/B):φ16 (T): M14X1.5 4-M12Manifold Mount
				A8	Splined 17-DP12/24,Z17	P9	(A/B):φ19 (T):7/16-20UNF 8x3/8-16UNC Manifold Mount
				A8	Splined 17-DP12/24,Z17	P9	(A/B):φ19 (T):7/16-20UNF 8x3/8-16UNC Manifold Mount			S	Silver gray
				A9	Involute splined shaft m=2.5,z=17,a=30°	P10	(A/B): G1 (T): G1/4	4-M12 Manifold Mount
				A10	Splined 8D-42X36X7	P11	(A/B): G314 (T):G1/4
	985			A11	Cylindrical shaft φ50 Parallel key A14X9X70	P12	(A/B): M33X2 (T): M14X1.5
				A12	Cylindrical shat φ40 Parallel key A12X8X70	P13	(A/B):M27X2 (T): M14X1.5
				A13	Tapered φ44.425,taper1:8 Paralell key B11.13X11.13X30	P14	(A/B): 1-5/16-12UN (T): 7/16-20UNF
				A14	Tapered φ45 shaft,taper1:10 Parallel key 12X8X32	P15	(A/B):G1/2(深18) (T):G1/4
				A15	Splined Pitch 8.5/17 Number of teeth 12	P16	(A/B): M22X1.5. (T): M14X1.5
						P17	(A/B): M18X1.5, (T): M14X1.5
						P18	(A/B): M24X1.5 (T):M14X1.5
						P19	(A/B):φ16 (T):M14X1.5
						P20	(A/B): G3/4 (T): G1/4	4-M10 Manifold Mount
						P21	(A/B): M27X2, (T): M14X1.5
						P22	(A/B): M22X1.5 (T): M14X1.5
						P23	(A/B): 7/8-14UNF, (T): 7/16-20UNF
						P24	(A/B): 1-1/16-12UN, (T):9/16-18UNF

Note:When the table is used, please fill the code of left rows in dash area and give us, which the code information is consists of construction, displacement, mounting flange. output shaft and ports. If the specification is not in the table or you have specific requirements, please contact us (whatsapp+8615106776651).

FAQ

Q: What is the delivery date after an order is placed?

A: It depends on whether the products you buy are in stock. If we have inventory, we can arrange shipment in 2 to 3 days. If not, the delivery time is determined by the production time of the factory.

Q: If the products do not meet the requirements, how to solve the problem?

A: If the products do not conform to the customer's samples or have quality problems, our company will be responsible.

Q: How to calculate torque?

A: The calculation formula is as follows:
Torque (Nm) = Displacement (cc/rev) x Working Pressure (MPa) x 0.16 (Factor)
According to the functional theorem: Vm (ml per radian) × w (radian per second) × p (MPa, differential pressure) × (total hydraulic motor efficiency) = w (radian per second) × T (Nm); so T =Vm×P×η; where the milliliter per radian of Vm is converted into milliliter per revolution and needs to be divided by 2π, which is multiplied by 0.16.
The displacement can be seen from the product label. The working pressure depends on the pressure gauge at the entrance of the orbit hydraulic motor. Knowing these two values, you can calculate the output torque of the orbit hydraulic motor at this time.

Q: What kind of Motor circuit is there?

A: Hydraulic motor circuit has series and parallel connection.
