Product Details
LK12T-01 Rotary Hydraulic Motor
|
|
|
|

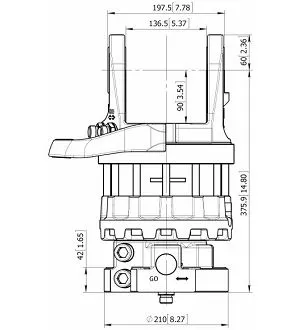

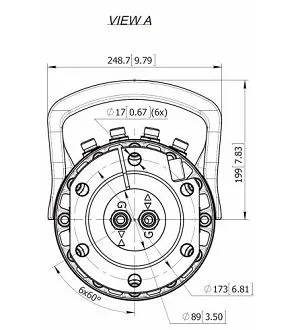

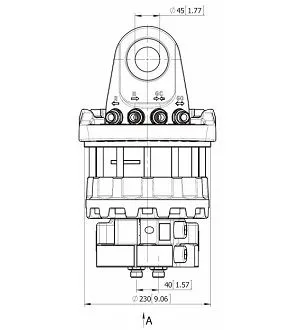

Attachment 1 |
Attachment 2 |
|
|
|
|
Attachment 3 |
Attachment 4 |
Specification Data
|
1. |
Rotation |
Unlimited |
||
|
2. |
Max axial load static,KN(lbf) |
+160(35976)-90(20236) |
||
|
3. |
Max axial load dynamic,KN(Ibf) |
+80(17988)-45(10118) |
||
|
4. |
Torque at 25Mpa(3625psi),Nm(lb ft) |
3400(2500) |
||
|
5. |
Rec oilfow, l/min (Us gallon) |
40 (10.6) |
||
|
6. |
Weight, kg (lb) |
71(157) |
||
|

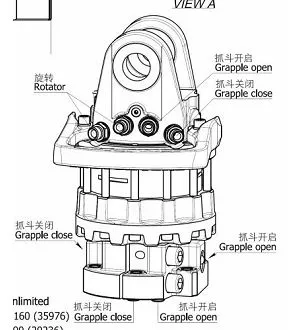

Working mode) |
illustration |
Max working pressure: |
Oil port |
|
|
1. |
Rotator |
|
Max 25 MPa(3625 psi) |
G1/2" |
|
2. |
Grapple/Tool open |
|
Max 20 MPa(2900 psi) |
G1/2" |
|
3. |
Grapple/Tool close |
|
Max 30 MPa(4350 psi) |
G1/2" |
Product Details
LK12T-02 Rotary Hydraulic Motor
|
|
|
|

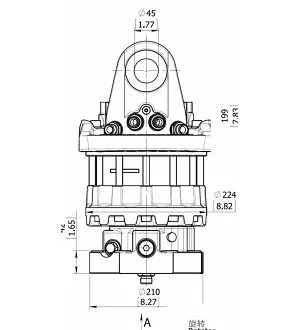

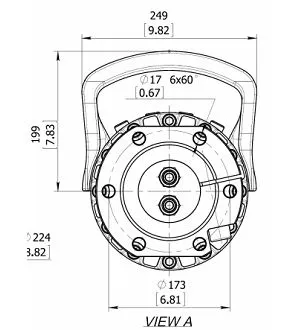

Attachment 5 |
Attachment 6 |
|
|
|
|
Attachment 7 |
Attachment 8 |
Specification Data
|
1. |
Rotation |
Unlimited |
||
|
2. |
Max axial load static,KN(lbf) |
+160(35976)-90(20236) |
||
|
3. |
Max axial load dynamic,KN(Ibf) |
+80(17988)-45(10118) |
||
|
4. |
Torque at 25Mpa(3625psi),Nm(lb ft) |
3400(2500) |
||
|
5. |
Rec oilfow, l/min (Us gallon) |
40 (10.6) |
||
|
6. |
Weight, kg (lb) |
71(157) |
||
|

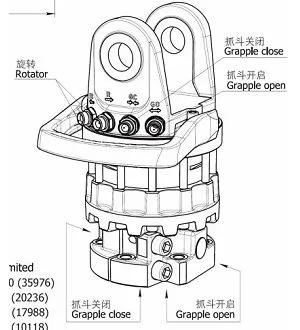

Working mode) |
illustration |
Max working pressure: |
Oil port |
|
|
1. |
Rotator |
|
Max 25 MPa(3625 psi) |
G1/2" |
|
2. |
Grapple/Tool open |
|
Max 20 MPa(2900 psi) |
G1/2" |
|
3. |
Grapple/Tool close |
|
Max 30 MPa(4350 psi) |
G1/2" |
Note: If the specification is not in the table or you have specific requirements, please contact us(whatsapp+8615106778662).
