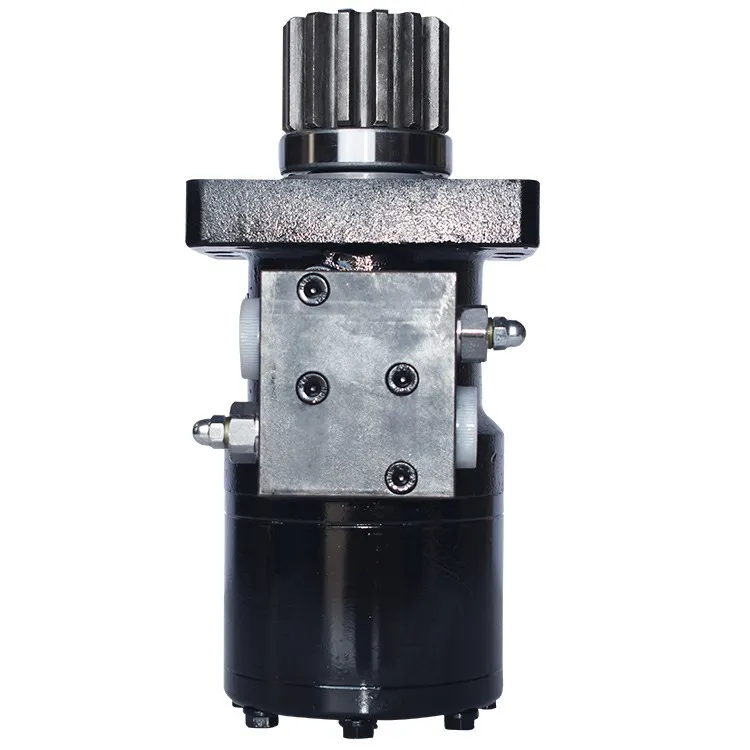

BM4 Orbit Hydraulic Motor With Spool Valve
BM4 Series introduction
Characteristic features:
1. Long life-span,at pressures up to 250 bar. Provide low leakage, high volume efficiency and long life.
2. High efficiency, even under considerable pressure. Can bear the Max. radial load force, which adapt dual bearing design. 3. Advanced the Geroler set design,high starting torque, provide high mechanical efficiency and reliable operation.
4. Shaft seal can bear high pressure of back and motor can be used in parallel or series
5. Advanced construction design, provide high power and low weight.
6.Shaft seal ca bear high pressure of back and the motor can be used in parallel or series.
Specification Data
1. Max. pressure is the allowed pressure at the inlet port.
2. A simultaneous maximum RPM and maximum pressure NOT recommended
Maximum pressure or maximum RPM operation: 10% of every minute.
3. Recommended fluids: Anti-wear type of hydraulic oil. Viscosity recommended 37-73 cSt. Recommended filtration ISO18/13.
4. Maximum operating temperature recommended 80℃.
5. Special high pressure capacity shaft seal ensures back pressure up to 10 Mpa.Recommended preferable back pressure 5 Mpa. Case drain line is recommended when back pressure higher than 5 Mpa.. The motor life is benefited from a case drain line.
6. It is highly recommended that the motor runs at 30% of rated pressure for at least one hour before application of full load. Be sure the motor is filled with fluid prior to any load applications.
