Product Details
LK4T-01 Rotary Hydraulic Motor
|
|
|
|
Attachment 1 |
Attachment 2 |
|
|
|
|
Attachment 3 |
Attachment 4 |
Specification Data
|
1. |
Rotation |
Unlimited |
||
|
2. |
Max axial load static,KN(lbf) |
45 (10118) |
||
|
3. |
Max axial load dynamic,KN(Ibf) |
25(5621) |
||
|
4. |
Torque at 25Mpa(3625psi),Nm(lb ft) |
1100(811) |
||
|
5. |
Rec oilfow, l/min (Us gallon) |
20 (5.3) |
||
|
6. |
Weight, kg (lb) |
23(51) |
||
|

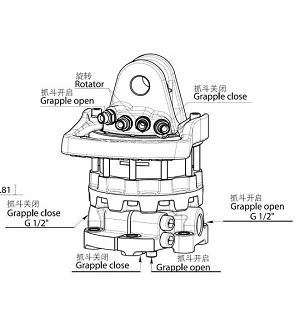

Working mode) |
illustration |
Max working pressure: |
Oil port |
|
|
1. |
Rotator |
|
Max 25 MPa(3625 psi) |
G3/8" |
|
2. |
Grapple/Tool open |
|
Max 20 MPa(2900 psi) |
G3/8" |
|
3. |
Grapple/Tool close |
|
Max 30 MPa(4350 psi) |
G3/8" |
Product Details
LK4T-02 Rotary Hydraulic Motor
|
|
|
|
Attachment 5 |
Attachment 6 |
|
|
|
|
Attachment 7 |
Attachment 8 |
Specification Data
|
1. |
Rotation |
Unlimited |
||
|
2. |
Max axial load static,KN(lbf) |
45 (10118) |
||
|
3. |
Max axial load dynamic,KN(Ibf) |
25(5621) |
||
|
4. |
Torque at 25Mpa(3625psi),Nm(lb ft) |
1100(811) |
||
|
5. |
Rec oilfow, l/min (Us gallon) |
20 (5.3) |
||
|
6. |
Weight, kg (lb) |
27(60) |
||
|
Working mode) |
illustration |
Max working pressure: |
Oil port |
|
|
1. |
Rotator |
|
Max 25 MPa(3625 psi) |
G3/8" |
|
2. |
Grapple/Tool open |
|
Max 20 MPa(2900 psi) |
G3/8" |
|
3. |
Grapple/Tool close |
|
Max 30 MPa(4350 psi) |
G3/8" |
Note: If the specification is not in the table or you have specific requirements, please contact us(whatsapp+8615106778662).
